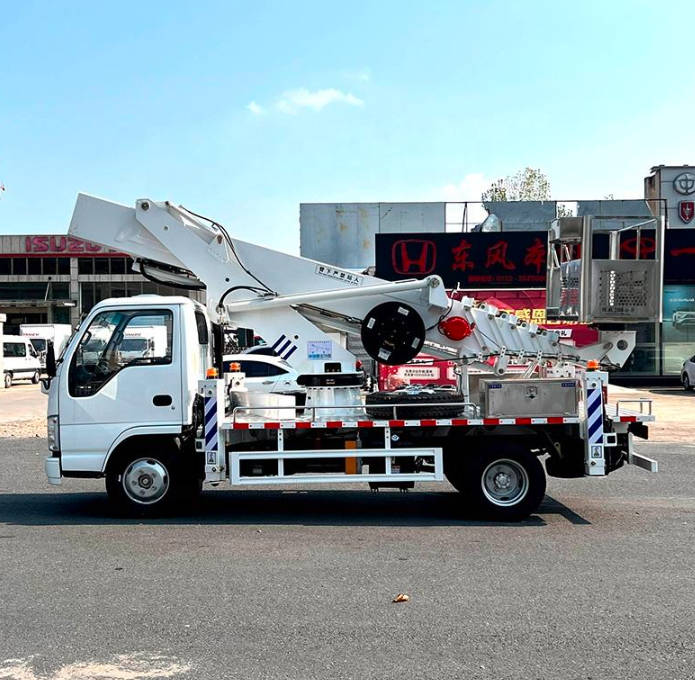

High Altitude Operation Truck 4×2 Truck Mounted Aerial Work Platform Bucket Truck

1. High-Performance Hydraulic System
The aerial work platform is powered by a high-performance hydraulic boom system, ensuring smooth and stable lifting operations. The hydraulic system controls boom extension, retraction, and lifting movements to deliver workers safely to the required working height.
2. 360° Continuous Rotation
Equipped with a continuous slewing system, this aerial work platform provides 360-degree rotation for flexible positioning. Operators can easily adjust the working direction and boom angle, making it suitable for maintenance, installation, and high-altitude construction tasks.
3. Convenient Remote and Platform Operation
The aerial work platform supports both remote and manual operation through an electro-hydraulic control system. Operators can control engine start and stop, boom extension, and lifting movements directly from the working platform, reducing the need for additional ground assistance.
4. Enhanced Safety and Stability
An outrigger interlock system helps ensure proper support before lifting operations begin. Combined with hydraulic controls and a stable outrigger structure, this bucket truck provides reliable support for personnel working at height and helps improve operational safety.
Description
Item | Спецификация |
|---|---|
Product Name | Aerial Lift Truck / Bucket Truck |
Total Mass (kg) | 4,495 |
Maximum Operating Height (m) | 28 |
Outrigger | Front V / Rear H Type |
Max. Persons Allowed in the Cab | 2 |
Slewing Gear | 360° Rotation |
Lifting Weight (kg) | 1,000 |
Maximum Operating Radius (m) | 13 |
Leg Span (Transverse / Longitudinal) (mm) | 5600 / 4400 |
Overall Dimensions (mm) | 5998 × 2000 × 2950 |
Platform Rated Load (kg) | 200 |
Emergency Device | Emergency Pump |
Maximum Speed (km/h) | 100 |
Warning Device | Engineering Strobe Light |
Operating Mode | Remote / Manual |
Horizontal Detection | Level Detector |
Jib Structure | Square |
Chassis Brand | ISUZU |
Fuel Type | Diesel |
Engine Power (kW) | 85 |
Number of Axles | 2 |
Number of Tires | 6 |
Front Axle / Rear Axle (t) | 2 / 4 |
Manufacturing Enterprise | Jiangnan Special Automobile Co., Ltd. |
Gearbox Model | 5-Speed Manual |
Wheelbase (mm) | 2800 |
Tire Size | 650R16LT |
